EH-TW7100 with HC Lamp Warranty

  • 4K PRO-UHD technology*: More realistic images that exceed Full HD resolution
  • Enhanced home entertainment: Built-in 10W stereo speakers and connections for streaming devices, game consoles, decoders, Blu-ray, tablets or other devices via two HDMI ports
  • Long-term solution: Thanks to the long-lasting light source, you can enjoy ideal performance for up to 7 years*
  • Superior image quality: 3,000 lumens brightness and 100,000:1 contrast. 4K PRO-UHD* projector with HDR10 delivers lifelike content and clear shadow detail. Epson's 3LCD technology delivers up to three times more color brightness compared to 1-chip DLP projectors*
  • Simple and intuitive use: Plug in, turn on, and enjoy content instantly

TO ORDER CONTACT US

Enjoy advanced, high-end features at an affordable price with this 4K PRO-UHD* projector. With a screen size of up to 500 inches, you can experience 4K content with high image quality and deep contrast. Image adjustment is easy thanks to lens shift, optical zoom and keystone correction. Installation is simple, content streaming is effortless and audio can be heard via built-in speakers or Bluetooth.

Technical Specifications


Technology

Design system: 3LCD, RGB liquid crystal shutter
LCD panel: 0.61 inches with C2 Fine


Image Performance

Color lighting: 3,000 lumens – IDMS15.4
White lighting: 3,000 lumens – ISO 21118:2020
Resolution: 4K PRO-UHD
Resolution improvement: 4K enhancement
Aspect ratio: 16:9
Number of pixels on the screen: 2,073,600 (1920 × 1080) × 3
Contrast: 100,000:1
Video processing in color: 10-bit
Color reproduction: Up to 1.07 billion colors
2D vertical frequency: 192 – 240 Hz
2D / 3D Frequency: 240Hz / 480Hz
3D vertical frequency: 400 – 480 Hz
HDR support: HDR10, HLG


Source of Light

Type: Lamp
Lamp type: UHE, 250 W

Lamp life:

  • 3,500 hours (Normal mode)

  • 5,000 hours (Economy mode)


Optical Parameters & Design

Throwing ratio: 1.32 – 2.15 : 1
Zoom: Manual (1.0 – 1.62×)
Lens: OPTICAL
Lens Shift: handbook

  • Vertical: ±60%

  • Horizontal: ±24%

Screen size: 40″ – 500″

Projection distance (Wide): 1.2m – 14.9m
Distance (Tele): 1.9m – 24m
Distance for 100″ screen: 2.95m – 4.77m

Lens F-number: 1.49 – 1.77
Focal length: 18.2 – 29.2 mm
Focus: handbook

Keystone correction:

  • Vertical: ±30° (manual)

  • Horizontal: ±30° (manual)

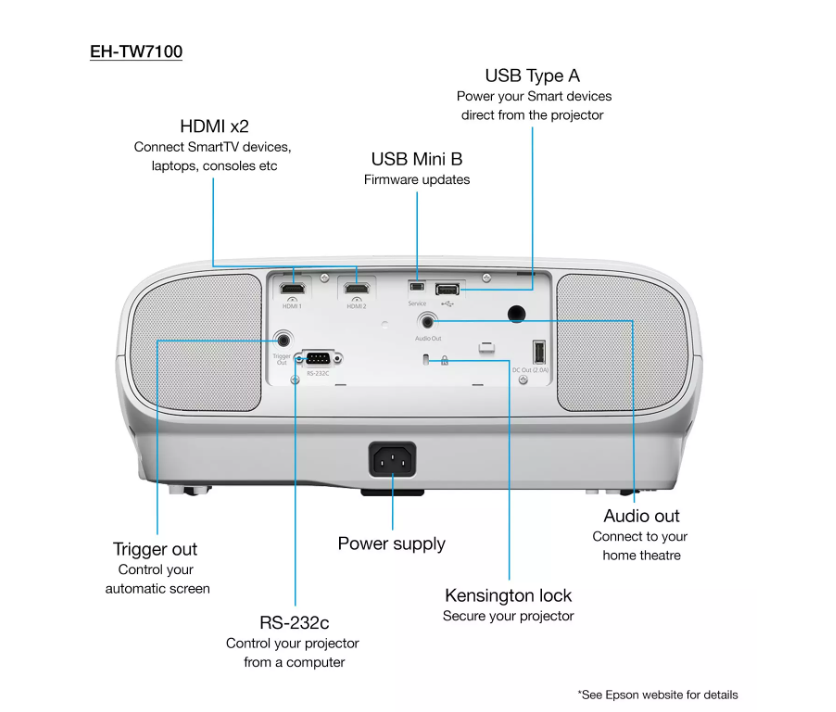

Connections

Ports:

  • USB 2.0-A (2×)

  • USB 2.0 Mini-B

  • HDMI In (2×)

  • Bodybuilding

  • Audio out jack

Wireless projection: Epson iProjection App (Ad-Hoc / Infrastructure)


Advanced Functions

Security: Kensington lock
3D Support: Active

Supported 3D formats: Side-by-side, Top-and-bottom

2D color modes: Dynamic, Natural, Cinema, Bright Cinema
Video modes: Automatic, Cinema, Dynamic, Natural, Bright Cinema

Additional functions:

  • 3D depth adjustment

  • 4K enhancement

  • Frame interpolation

  • Horizontal & vertical keystone correction

  • Quick Corner

  • Wireless LAN support


Audio

Integrated boxes: 10W, Stereo


General Specifications

Energy consumption:

  • 323 W (Normal mode)

  • 387 W (Normal Peak)

  • 297 W (Peak Eco)

  • 0.5 W (Power saving standby)

Voltage: AC 100–240 V, 50–60 Hz

Noise level:

  • Normal: 32 dB(A)

  • Economic: 24 dB(A)


Dimensions & Weight

Dimensions (W × D × L): 410 × 310 × 157 mm
Weight: 6.9 kg
Color: White


Environmental Conditions

Operating temperature: 5°C – 30°C
Storage temperature: −10°C – 60°C
Operating humidity: 20% – 80%
Humidity in storage: 10% – 90%


Installation & Safety

Incorrect installation on a ceiling or wall may cause the projector to fall, resulting in damage or injury.
Make sure all mounting points are secured according to the user manual.
Use only Epson-approved ceiling mounts for the respective model.
In ceiling installations, the use of a safety cable is recommended.

Environments with oily smoke, chemical fumes, or stage effects can accelerate the degradation of materials.
Regular inspection by the user or a qualified professional is recommended.


Installation & Options

Optional accessories:

  • Air filter ELPAF38

  • Ceiling mount MB22

  • Wireless LAN unit

Positioning: Ceiling mounting or tabletop placement


Ideal Use For

  • 4K Gaming

  • Home cinema

  • SPORTS

  • TV & Series

4K PRO-UHD for Superior Image Quality

Enjoy vivid colors and rich details with this affordable 4K PRO-UHD* projector. With 3,000 lumens of both White and Color Brightness, it delivers bright, vivid images in any scene. A 100,000:1 contrast ratio delivers deep blacks and crisp shadows, while frame interpolation technology ensures smoother, sharper motion in fast-moving scenes.

Big Screen Experience

Turn your home into a true home cinema. With the ability to project up to 500 inches, this projector fully immerses you in movies, sports or gaming. It supports 2D and 3D content, while features like lens shift, optical zoom and keystone correction allow you to position the image exactly where you want it, without difficulty.

Simple and Intelligent Connections

Place a streaming device on the back of the projector and start watching right away. Two HDMI inputs let you connect game consoles, set-top boxes, Blu-ray players, tablets, or other 4K devices. Sound is handled by two built-in 10W stereo speakers, for a complete audio-visual experience without additional equipment.

EH-TW7100 with HC Lamp Warranty

  • 4K PRO-UHD technology*: More realistic images that exceed Full HD resolution
  • Enhanced home entertainment: Built-in 10W stereo speakers and connections for streaming devices, game consoles, decoders, Blu-ray, tablets or other devices via two HDMI ports
  • Long-term solution: Thanks to the long-lasting light source, you can enjoy ideal performance for up to 7 years*
  • Superior image quality: 3,000 lumens brightness and 100,000:1 contrast. 4K PRO-UHD* projector with HDR10 delivers lifelike content and clear shadow detail. Epson's 3LCD technology delivers up to three times more color brightness compared to 1-chip DLP projectors*
  • Simple and intuitive use: Plug in, turn on, and enjoy content instantly
